Transversal Zip Applicator – From Reel to Pre-Zipped Reel
4-Station System for Transversal Zip Application

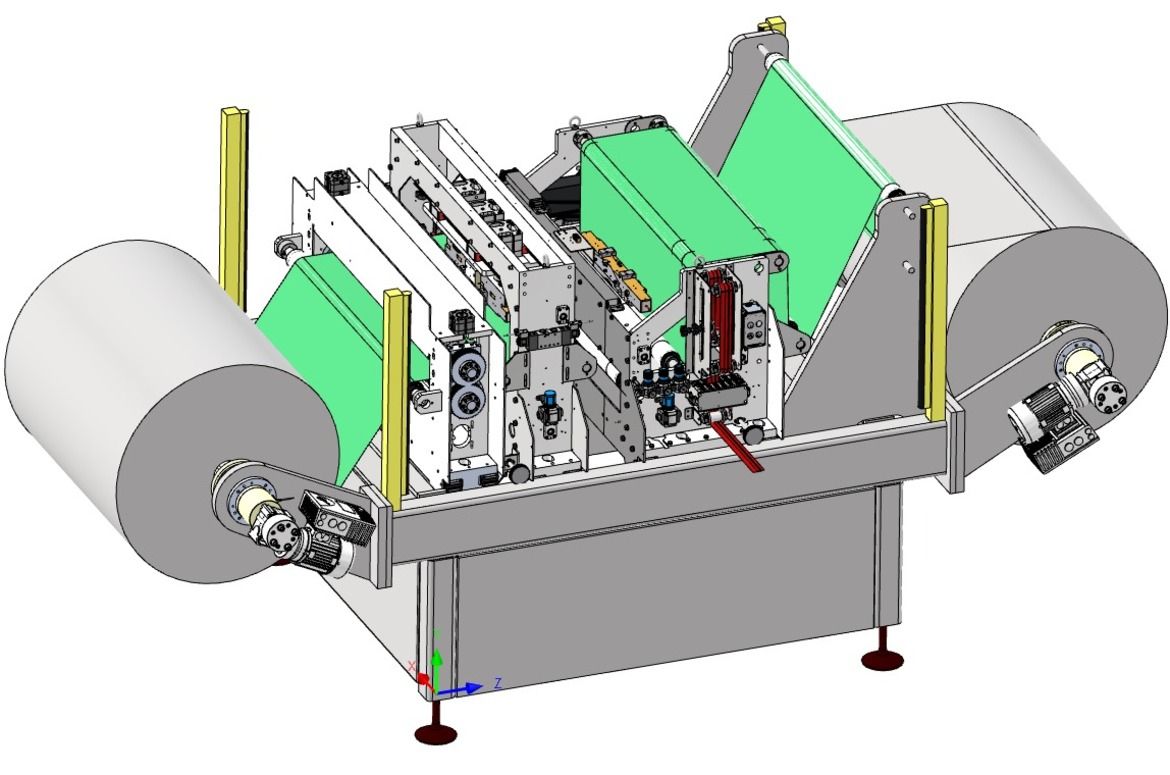

Device designed to transform a standard film reel into a rewound reel with a transversal zip applied — with or without pre-cut.

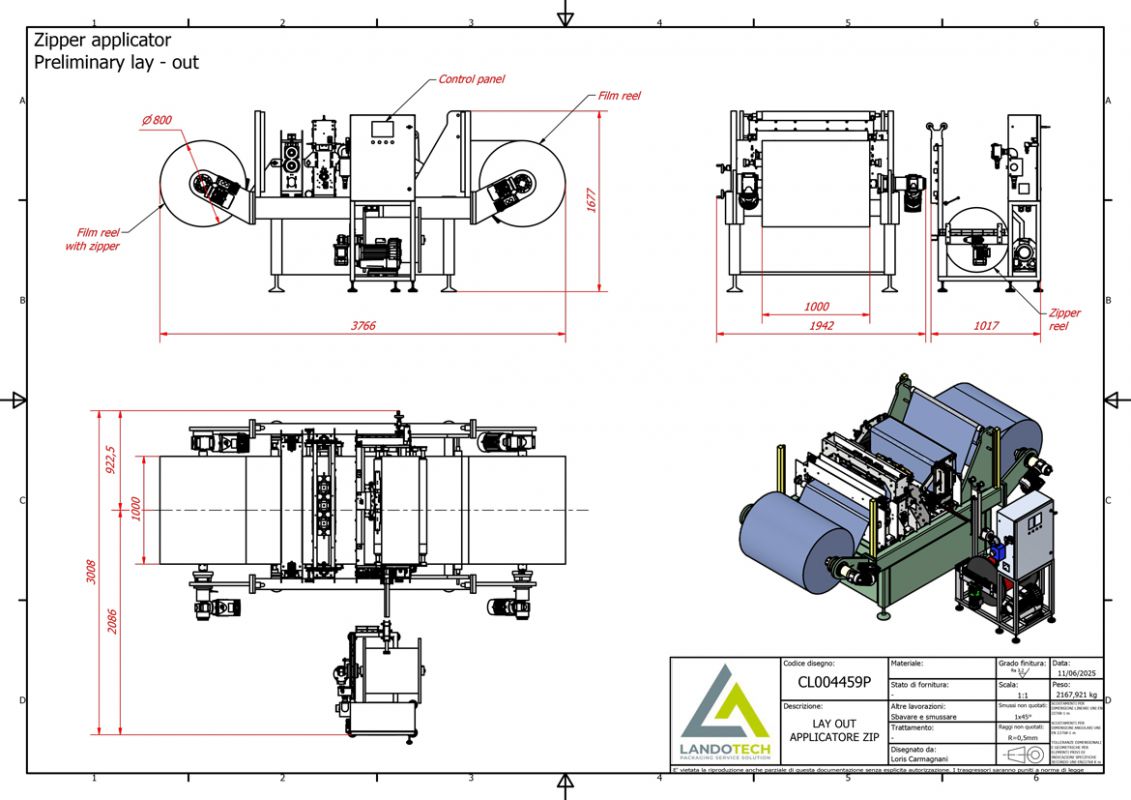

Machine Composition

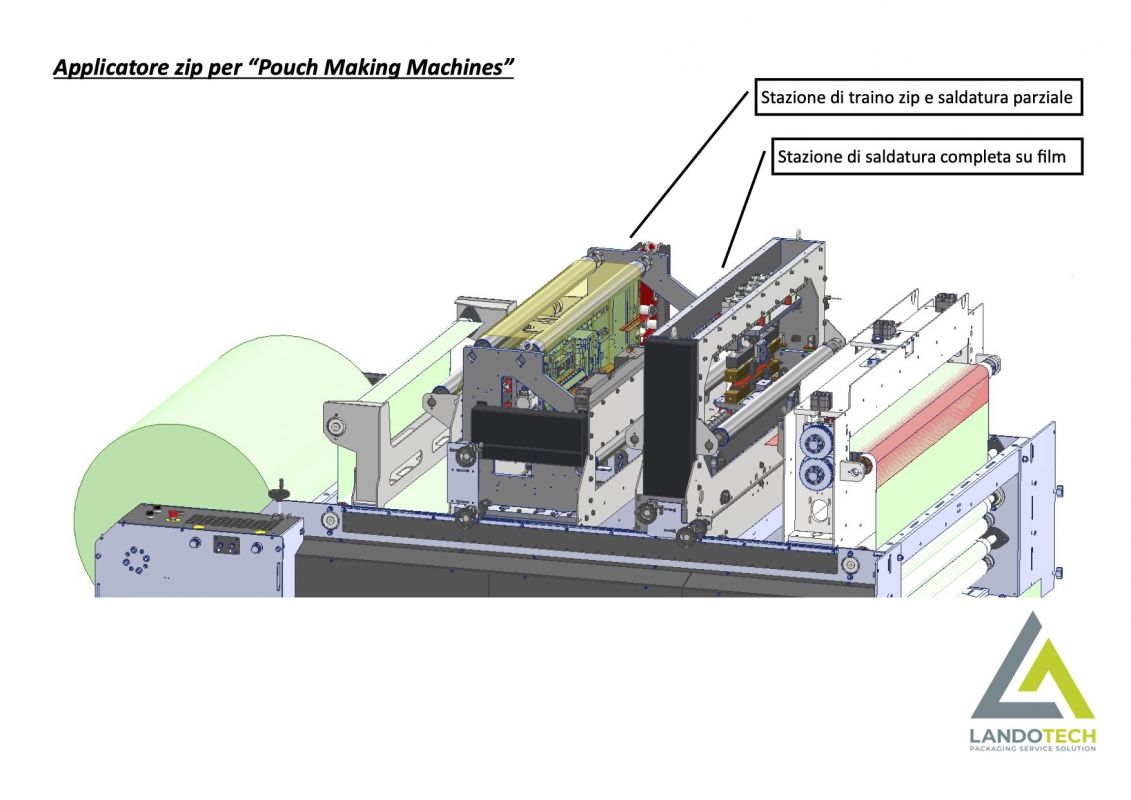

The system operates across four main stations:
-
Film Cutting Station
-

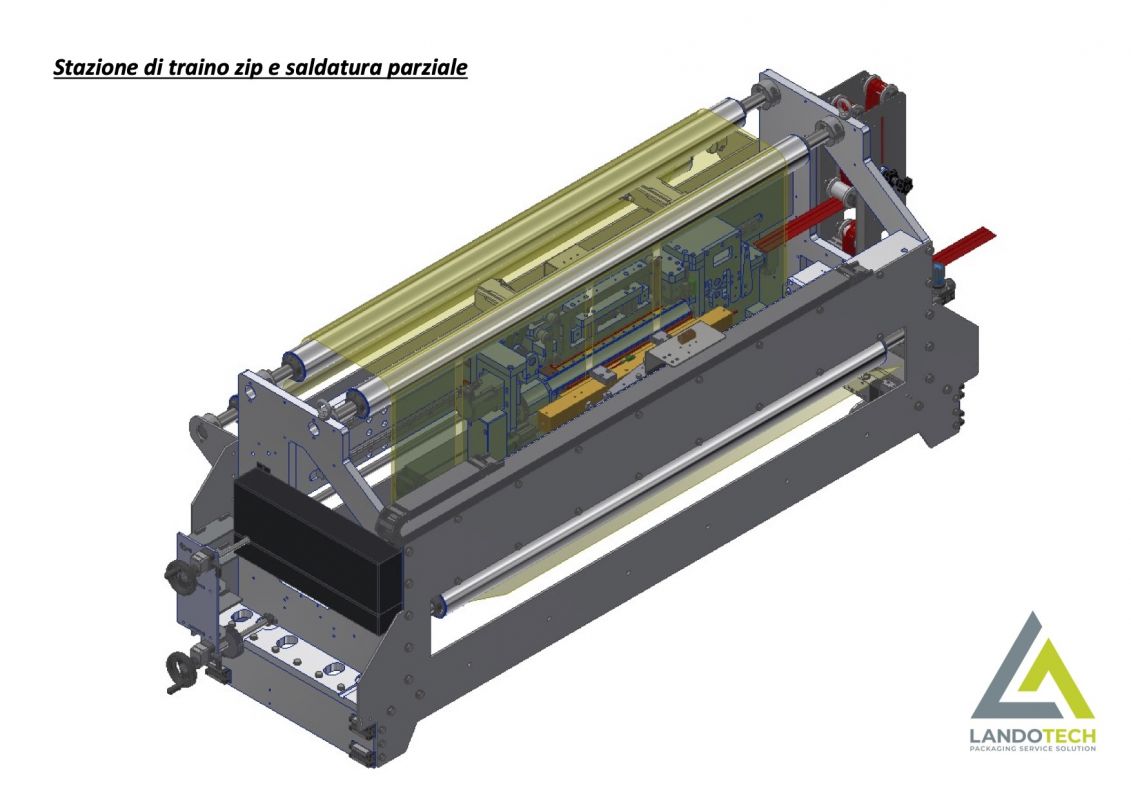

Partial Zip Welding Station
-

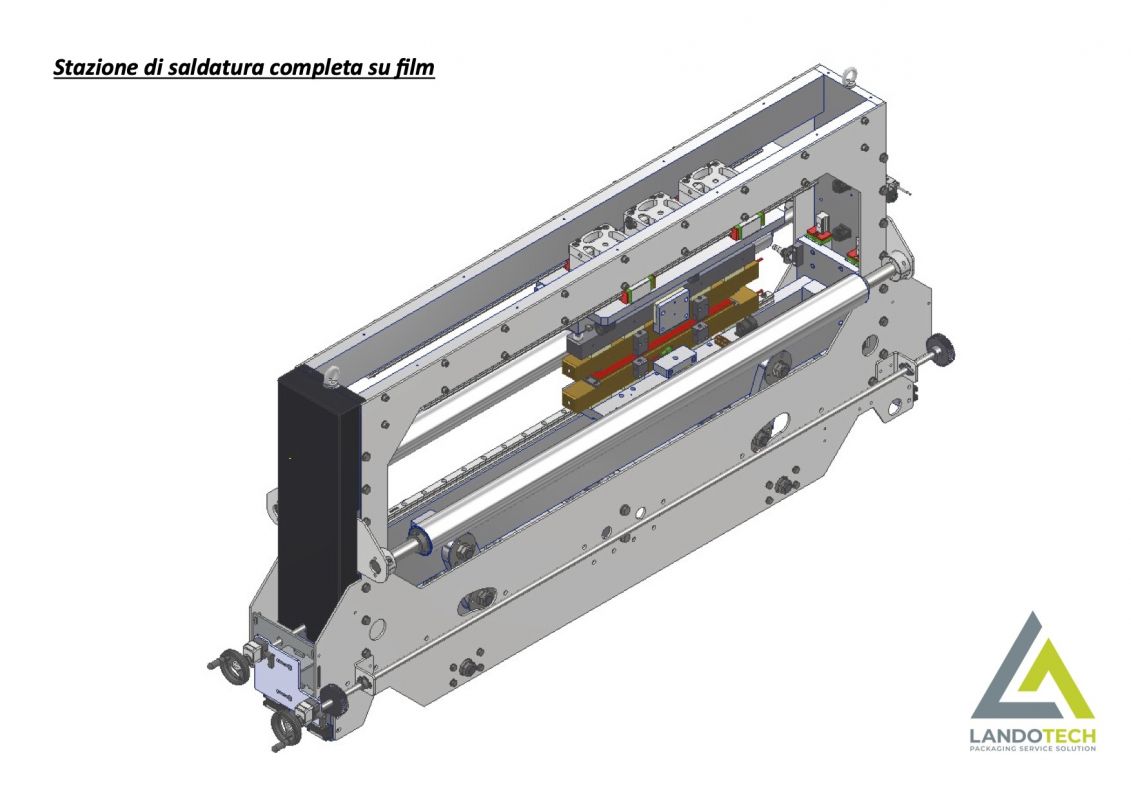

Final Zip Welding Station
-
Film Towing Station
Technical Specifications
-
Control system: Siemens PLC with operator touch panel
-
Electrical cabinet with certified components
-
Mechanical structure: support frame in aluminum tubular profiles
-
Protective covers with integrated safety microswitches
-
Infeed dancer unit for film tension management
-
Sliding (translation) station for film cutting
-
Sliding (translation) station for zip application
-
Sliding (translation) station for zip welding
-
Fixed film towing station
-
Film recovery dancer unit
-
Pneumatic system
-
Vacuum pump
-
Zip reel holder group
-
Instruction manual included
