VALVE APPLICATOR Mod. LTMVM-2 WITH LOAD
Semi-Automatic Valve Applicator for Wipf Valves W6xx or W0xx
General Specifications

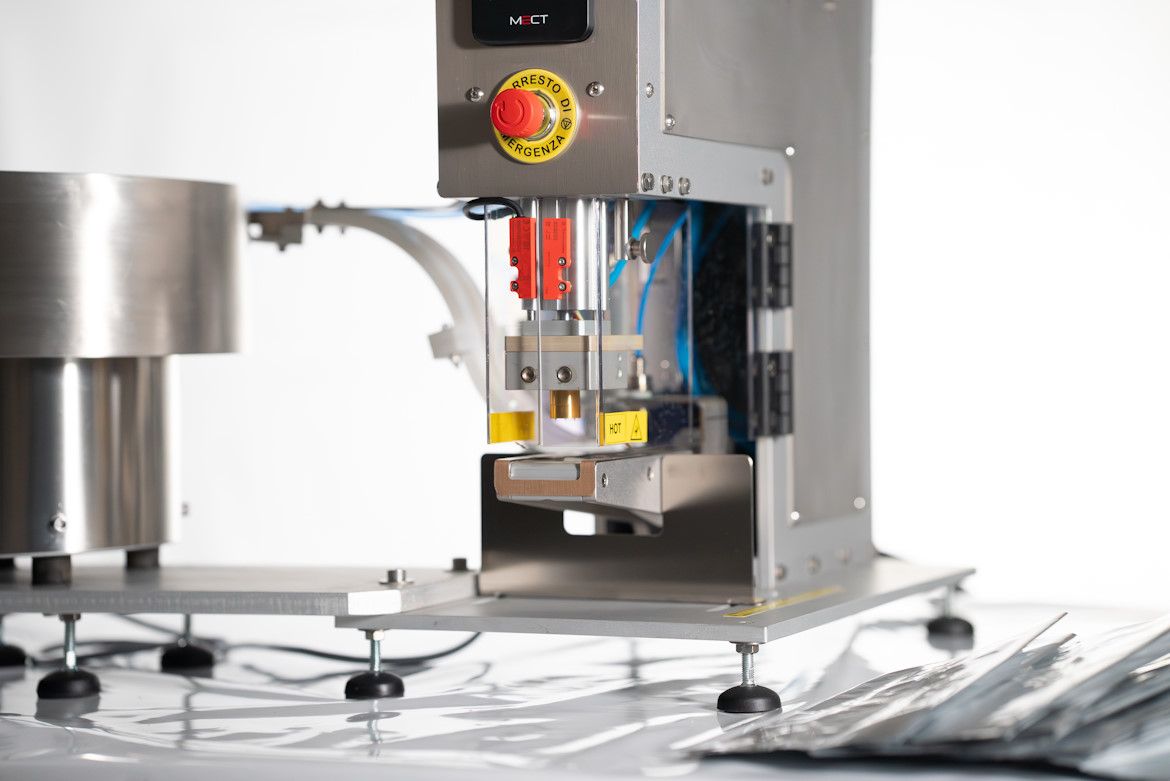

Semi-automatic device for the application of degassing valves on preformed bags.

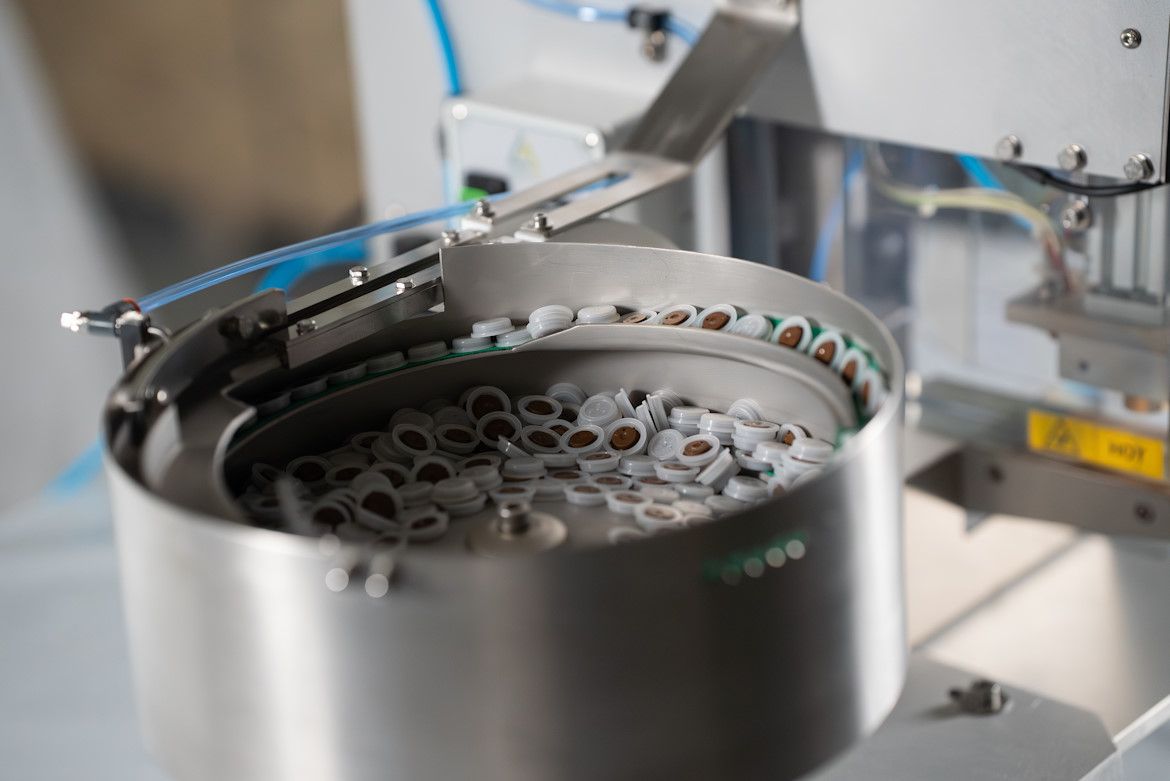

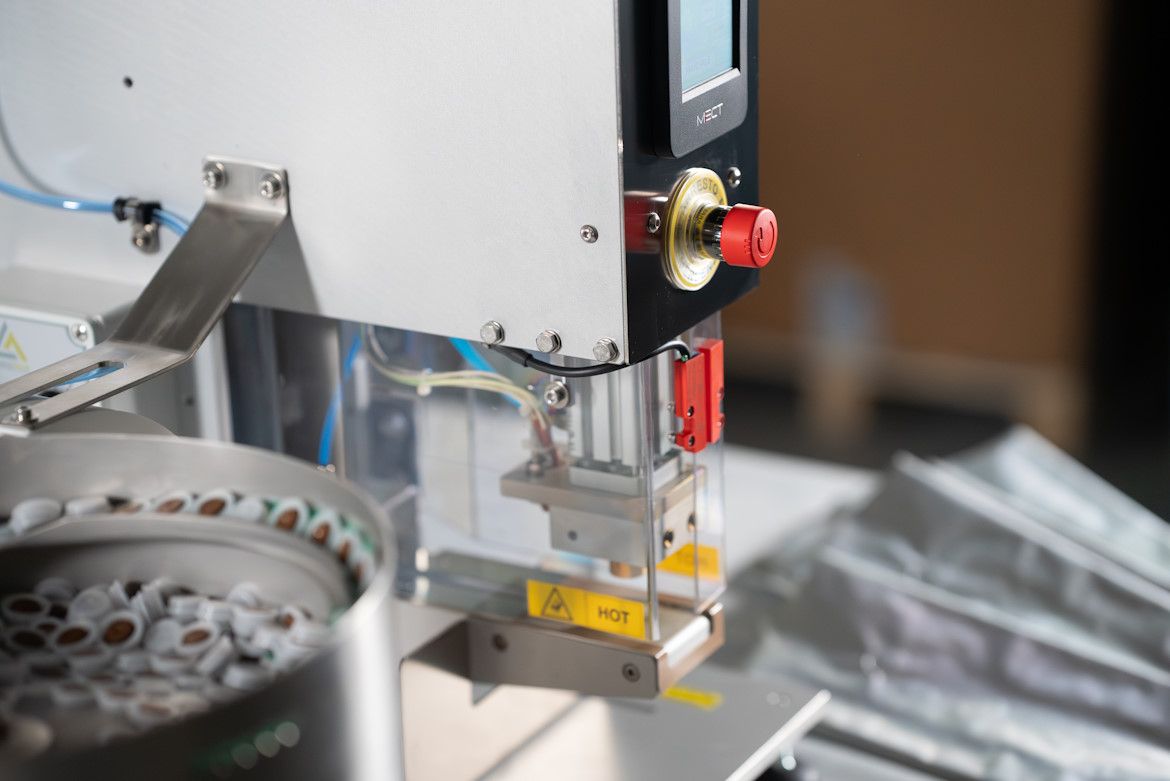

The valve is automatically loaded into a tank and conveyed to the welding area through a circular vibrator and gravity feed system. Mechanical movements position the valve precisely. The operator inserts the bag into the welding area, and the valve is applied using a foot switch.
In this configuration, the vibrating orienter automatically feeds the valve applicator.
All welding parameters are managed by a PLC with a user-friendly yet comprehensive interface.
The device can be connected to the company network to monitor and download production data. Remote diagnostics of the machine are also possible.
Technical specifications
|
|
|
|
Max application speed |
30 valves per minute (it depends to the operator) |
|
Program memory capacity |
50 |
|
Languages operating panel |
Italian – English – Frech – Spanish |
|
Supply voltage |
220V - 50Hz |
|
Pneumatic pressure |
6 Bar |
|
Weight |
20 kg |
|
Operation |
Tramite pedale |
